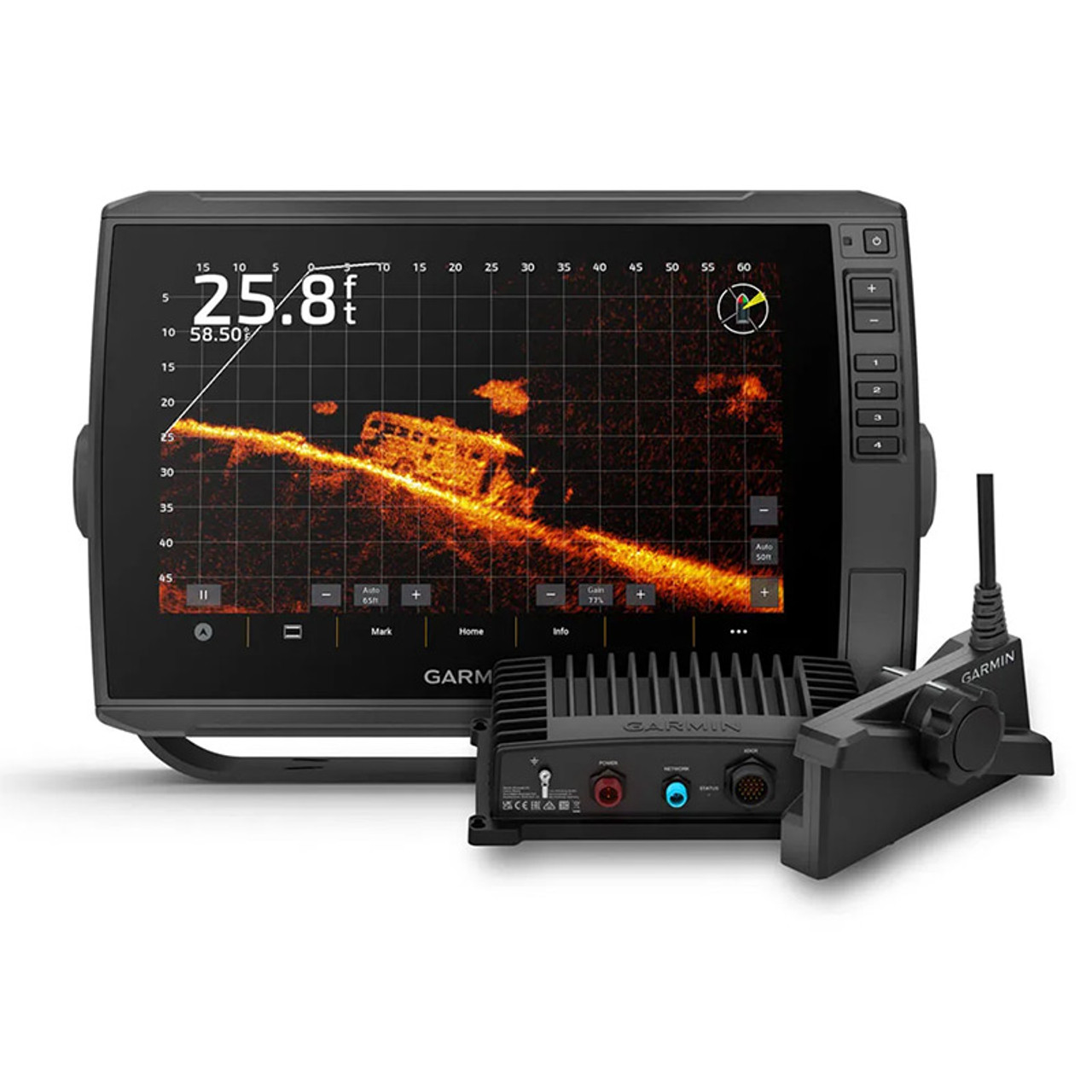

ECHOMAP Ultra 2 106sv 10" Chartplotter w/ Livescope Plus by Garmin

$2,999.99

$2,599.99

(No reviews yet) Write a Review

SKU:

PLEASE NOTE: Clothing containing PFAS can no longer be shipped to CA or NY.

WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov.

Overview
Reviews

Product Description

LIMITED TIME OFFER: Get a free VDW Garmin Hoodie with the purchase of any Garmin unit!
** Shirt must be added to cart! Click here to select color/size. **

Take your fishing to new depths with our all-in-one ECHOMAP Ultra 2 and Livescope Plus bundle, designed to deliver unmatched sonar clarity, precision mapping, and seamless integration. This powerful package provides real-time sonar views of fish, structure, and your lure in stunning detail. With effortless installation and pre-configured compatibility, you’ll be on the water faster and fully equipped for success. Available in a 10” and 12” models.

In The Box:

ECHOMAP™ Ultra 2 106sv chartplotter with Garmin Navionics+™ maps for U.S. coastal and inland/Canada offshore
LiveScope™ Plus System (includes GLS™ 10 black box, LiveScope™ Plus LVS34 transducer, perspective mount, trolling motor barrel mount, and all required cables)
20 ft. (6.1 m) Garmin Marine network cable (large connectors)
Power cable
Bail mount with quick release cable
Protective sun cover
8-pin transducer to 12-pin sounder adapter cable
Hardware
Documentation

Specs:

General
Dimension	11.6" x 7.7" x 3.9" (29.5 x 19.5 x 9.8 cm)
Weight	4.0 lbs (1.8 kg)
Water rating	IPX7
Touchscreen	yes
Display Type	WXGA, IPS
Display Size	8.5" x 5.4"; 10" diagonal (21.7 x 13.6 cm; 25.4 cm diagonal)
Display resolution	1280 x 800 pixels
Mounting Options	Bail or flush
Input	Touchscreen with Keyed Assist

Maps & Memory
Accepts Data Cards	2 microSD cards
Waypoints	5000
Track points	50,000
Tracks	50 saved tracks
Navigation Routes	100

Sensors
GPS	yes
GLONASS	yes
Galileo	yes
BeiDou	yes
Has built-in receiver	yes
Receiver	10 Hz
NMEA 2000 Compatible	yes
Supports WAAS	yes
Supports multi-band, multi-constellation GPS	yes

Optional Map Support
BlueChart g3	yes
BlueChart g3 Vision	yes
Garmin Navionics+™	yes
Garmin Navionics Vision+™	yes
TOPO 100K	yes
Standard Mapping	yes
Garmin Quickdraw Contours	yes

Chartplotter Features
AIS	yes
DSC	yes
Supports Fusion-Link™ compatible radios	yes
ActiveCaptain® compatible	yes
Sailing Features	yes

Electrical Features
Power Input	9 to 18 Vdc
Typical current draw at 12 Vdc	2.3 A
Maximum current draw at 12 Vdc	5.0 A
Maximum power usage at 10 Vdc	34 W

Sonar Features
Displays sonar	yes
Power output	600 W
Traditional sonar (dual frequency/beam)	built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
ClearVü	Built-in 260/455/800/1000/1200 kHz
SideVü	Built-in 260/455/800/1000/1200 kHz
Panoptix™ sonar	yes
LiveScope	yes

Connections
NMEA 2000® ports	1
Garmin Marine Network Ports	2 (large connector)
12-pin transducer ports	12-pin scanning sonar
ANT® (Connectivity)	yes
Garmin Wi-Fi network (local connection)	yes
